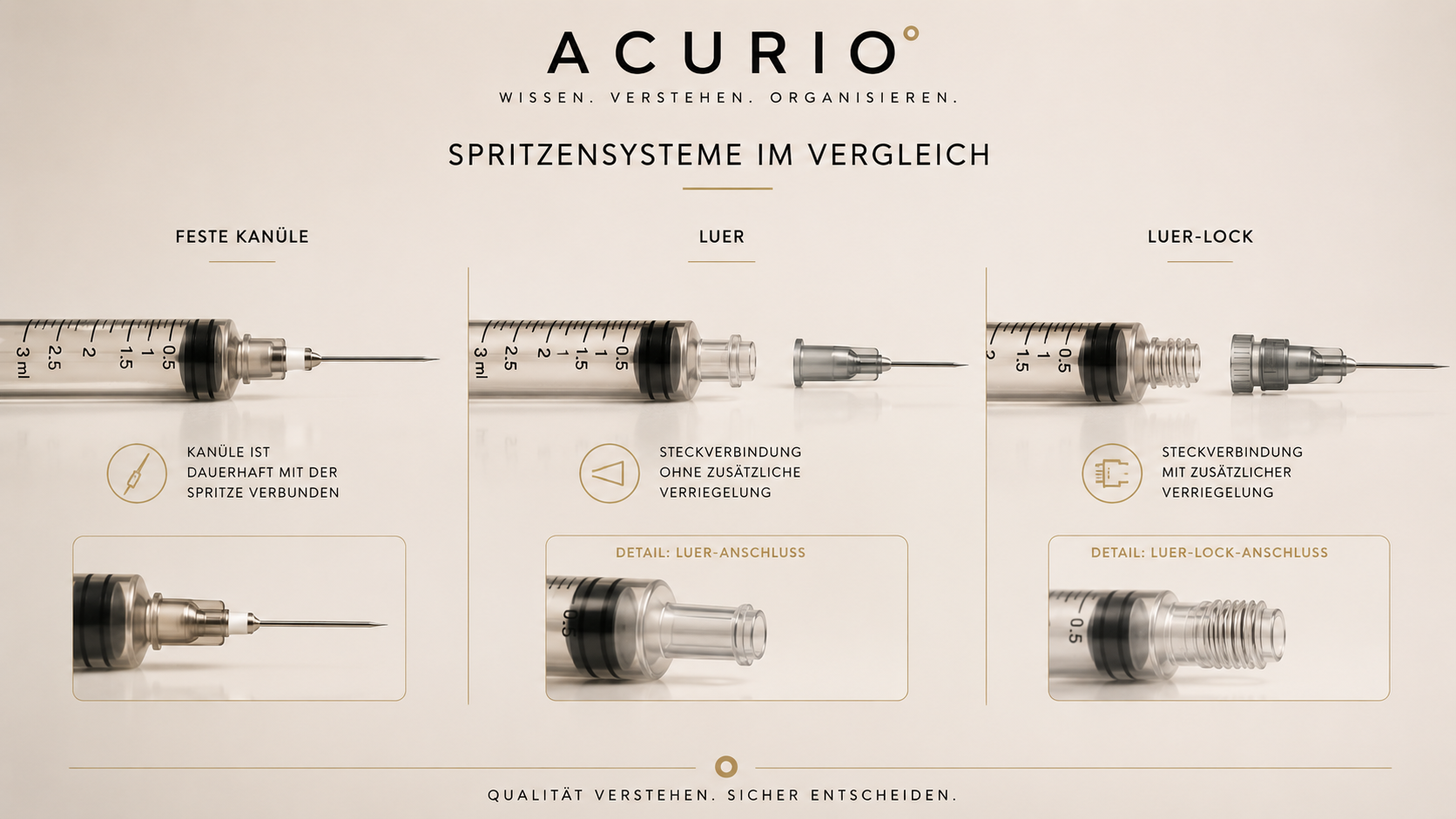

Syringe Systems Explained: Fixed Cannula, Luer, and Luer-Lock Compared
Anyone working with sterile disposable products often encounters different terms and connection systems.
Three variants are particularly common:
- Syringes with permanently integrated cannula
- Luer slip-tip systems
- Luer-Lock systems
But how do these systems actually differ?
This article explains the technical differences, the design, and the respective properties of the various connection systems.
Syringes with Permanently Integrated Cannula
In a syringe with a permanently integrated cannula, the cannula is permanently attached to the syringe barrel.
This means:
The syringe and cannula form a fixed unit and are manufactured together.
Typical characteristics:
✓ fixed connection between syringe and cannula
✓ no separate cannula assembly required
✓ compact design
✓ fewer individual components
Since the cannula cannot be changed, the size and properties of the cannula are already determined by the respective product.
What does Luer mean?
The Luer system is an internationally used connection system for medical components.
Syringes and suitable accessories have standardized connections that can be joined together.
A classic Luer system works via a slip-tip connection.
Characteristics:
✓ standardized connection
✓ combination of compatible components possible
✓ interchangeable attachments
✓ simple slip-tip connection
Actual compatibility always depends on the manufacturer's specifications for the respective products.
What is a Luer-Lock system?
The Luer-Lock system is based on the same basic principle but additionally features a mechanical locking mechanism.
The connection is secured by a twisting motion.
Characteristics:
✓ standardized connection
✓ additional screw/locking function
✓ secure connection between components
✓ reduced likelihood of unintentional dislodgement
The term "Lock" describes the mechanical securing of the connection.
Luer vs. Luer-Lock – the Technical Difference
|
Feature |
Luer |
Luer-Lock |
|---|---|---|
|
Connection |
Slip-tip system |
Slip-tip system with lock |
|
Fixation |
by fit |
additional twist lock |
|
Interchangeable components |
yes |
yes |
|
Standardized system |
yes |
yes |
Both systems are based on standardized connection concepts. The compatibility of the components used is always crucial.
Why are there different syringe systems?
Different systems exist because various application areas have different technical requirements.
Factors such as:
- design
- volume
- graduation
- connection type
- accessories used
- manufacturer requirements
can play a role.
The choice of a system always depends on the intended use and the manufacturer's information.
What do terms like ml, graduation, and dead space mean?
In addition to the connection system, syringes also differ in other technical properties.
Volume
The size indication in milliliters (ml) describes the capacity of the syringe barrel.
Graduation
The printed scale allows for reading small fluid volumes according to the product design.
Dead space
Dead space refers to the area of a system where a small residual amount may remain due to the design after complete operation.
The size of this area depends on the respective product design.
Conclusion
Fixed cannulas, Luer systems, and Luer-Lock systems mainly differ in their design and type of connection.
Briefly summarized:
- Fixed cannula: Syringe and cannula form a single unit
- Luer: standardized slip-tip connection
- Luer-Lock: slip-tip connection with additional lock
All systems have different technical properties. The information and specifications of the respective manufacturer are always crucial.
